Imagine this: You're documenting an unreleased feature, and your documentation requires screenshots. However, you're working in an internal environment that includes features you don't want to reveal to the public. What do you do?
We faced this exact situation during the API Summit release when we needed to capture screenshots of the new Kong Konnect Plus dashboard while our internal environment also showcased Mesh Manager features.
In days gone by, tackling such a challenge meant delving into browser dev tools, meticulously hiding elements each time, and redoing the process after refreshing the browser. Now, there’s a better way. Let me introduce you to shot-scraper.
At Kong, we’ve adopted shot-scraper, a tool for taking automated screenshots of websites, as part of our core workflow. We’ve even extended shot-scraper with the capability to run macros.
Macros are predefined JavaScript functions that can be executed at specific moments, enhancing your ability to interact with the web page and set up conditions prior to capturing the screenshot.
To solve the issue outlined above, I crafted a simple shot-scraper macro to remove elements from the page:
- type: function
name: removeElementBySelector
javascript: |
function (selector) {
const elementToDelete = document.querySelector(selector);
if (elementToDelete) {
elementToDelete.parentNode.removeChild(elementToDelete);
}
}
This macro was used in the following shot-scraper script to hide the Mesh Manager section in the sidebar:
- output: ../../app/assets/images/docs/konnect/konnect-control-plane-dashboard.png
url: https://cloud.konghq.com/us/gateway-manager/
wait: 4000
width: 1920
height: 800
javascript: |
removeElementBySelector('a.sidebar-item-link[href="/us/mesh-manager/"]');

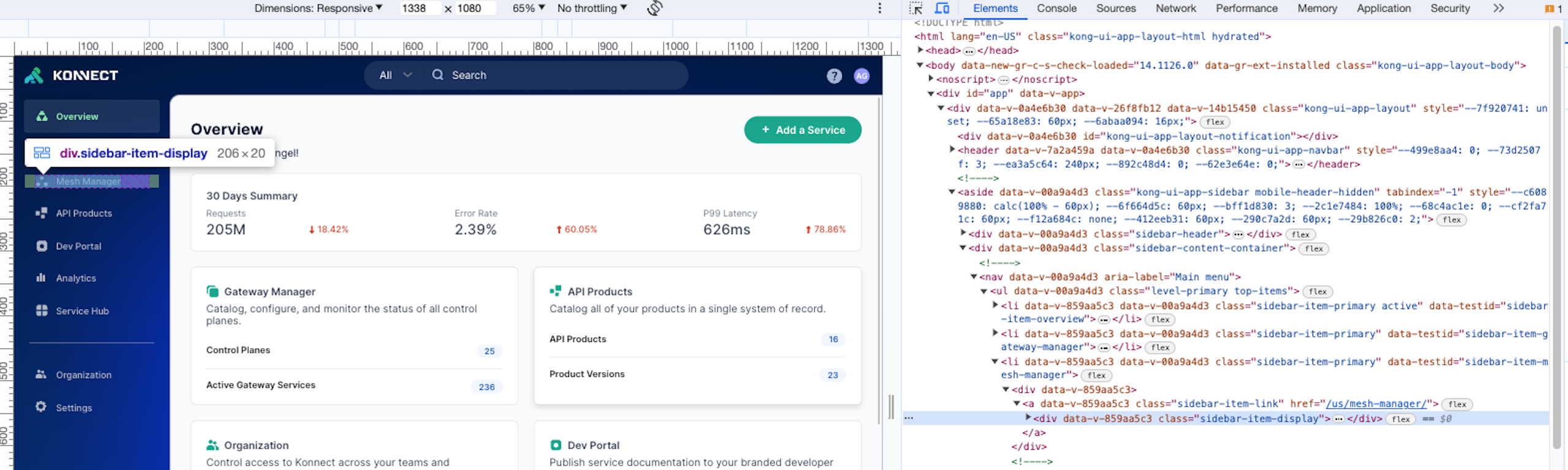

Without shot-scraper, we would have had to edit the page manually using developer tools each time the page loaded:
We use shot-scraper for a variety of different tasks:

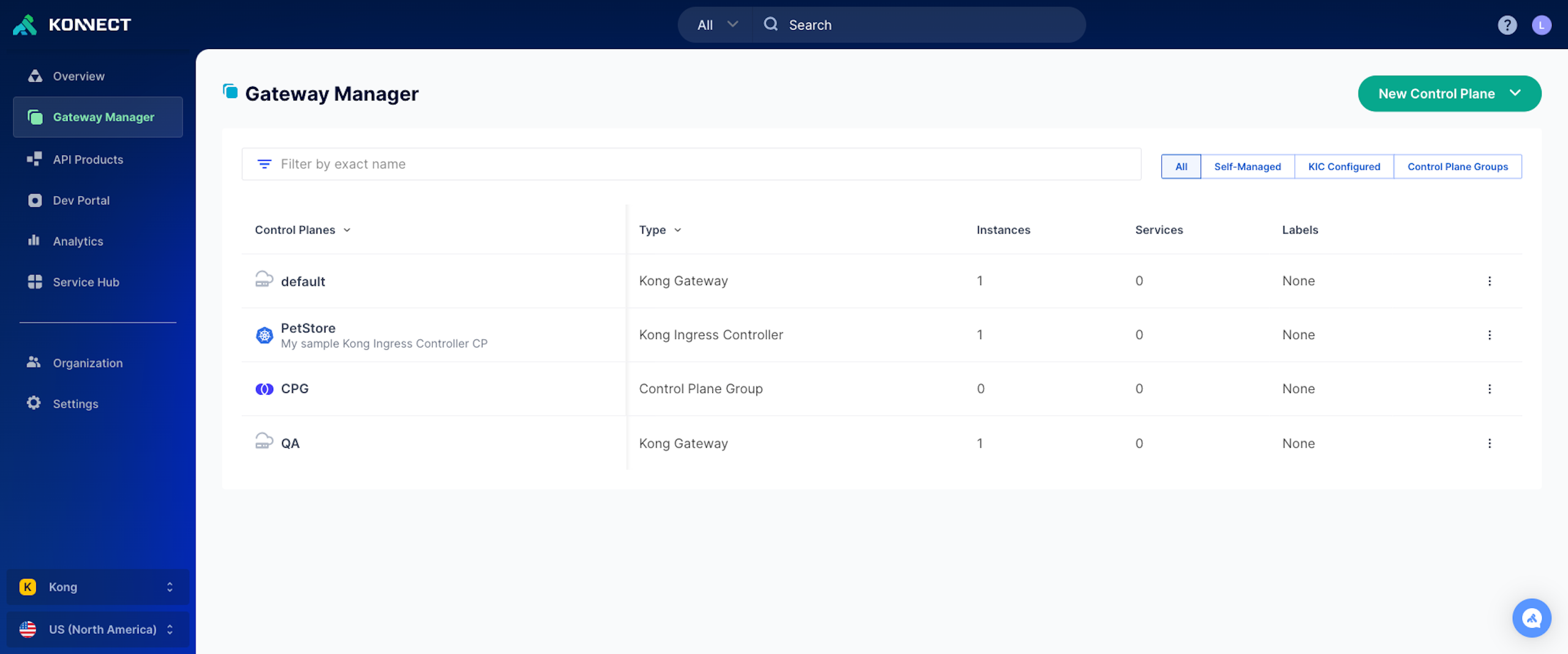

1. Take a standard screenshot of a dashboard:
- output: ../../app/assets/images/docs/konnect/konnect-control-plane-dashboard.png
url: https://cloud.konghq.com/us/gateway-manager/
wait: 4000
width: 1920

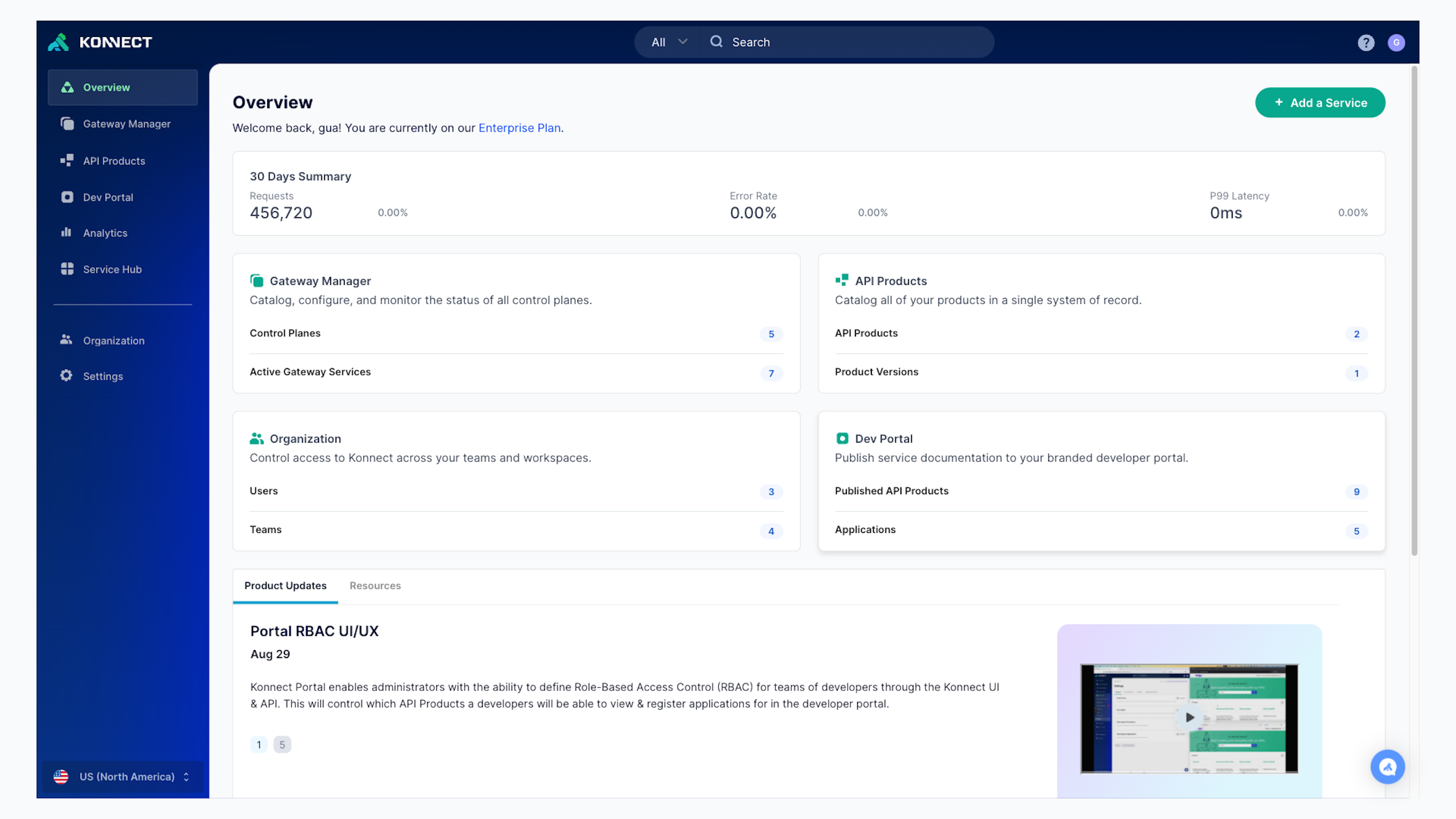

height: 8002. Update the page with random values (in this case the number of requests):
- output: ../../app/_assets/images/docs/konnect/konnect-dashboard.png
url: https://cloud.konghq.com/us/overview/
wait: 4000
width: 1920
height: 1080
javascript: |
async () => {
updateDivWithRandomNumberInRange('div[data-v-ee980c4c][style="font-size: 22px;"]', 30000, 600000);

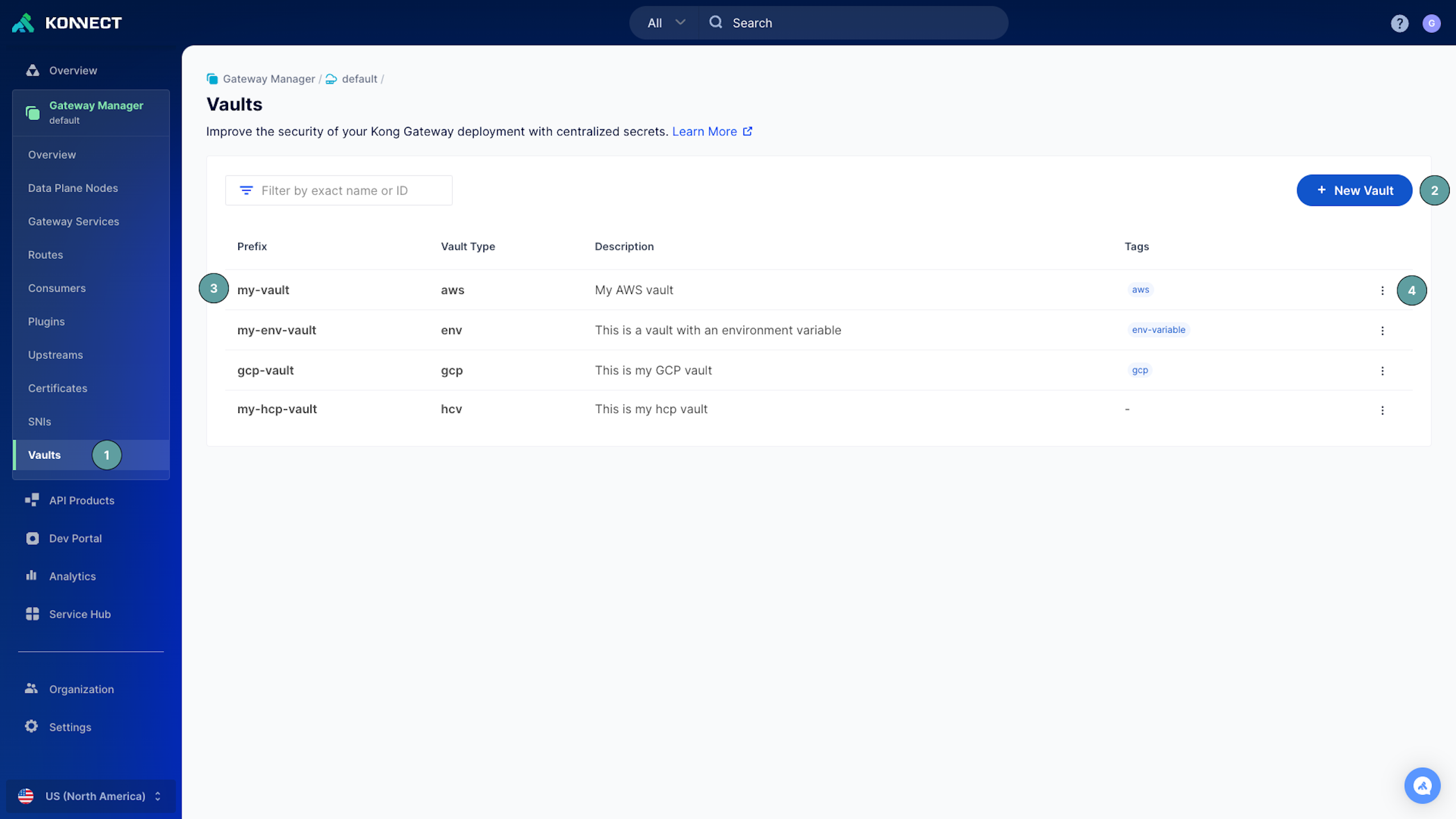

}3. Add annotations to specific elements on a page that you can reference in written documentation:
- output: ../../app/_assets/images/docs/konnect/konnect-vaults.png
url: https://cloud.konghq.com/us/runtime-manager/988f1fa1-fd93-4ef7-a1f5-c481bd86e945/vaults
wait: 4000
width: 1920
height: 1080
javascript: |
async () => {
const sidebarItem = document.querySelector("#subnav-gateway-manager > li.sidebar-item-secondary.active > a");
const prefixItem = getTestId('prefix');
const addItem = getTestId('toolbar-add-vault');
const menuItem = getTestId('overflow-actions-button');
annotateNumber(sidebarItem, { number: 1, position: { left: "100px" } });
annotateNumber(addItem, { number: 2, position: { right: "-50px" } });
annotateNumber(prefixItem, { number: 3, position: { left: "-35px", top: "4px" } });
annotateNumber(menuItem, { number: 4, position: { right: "-35px" } });

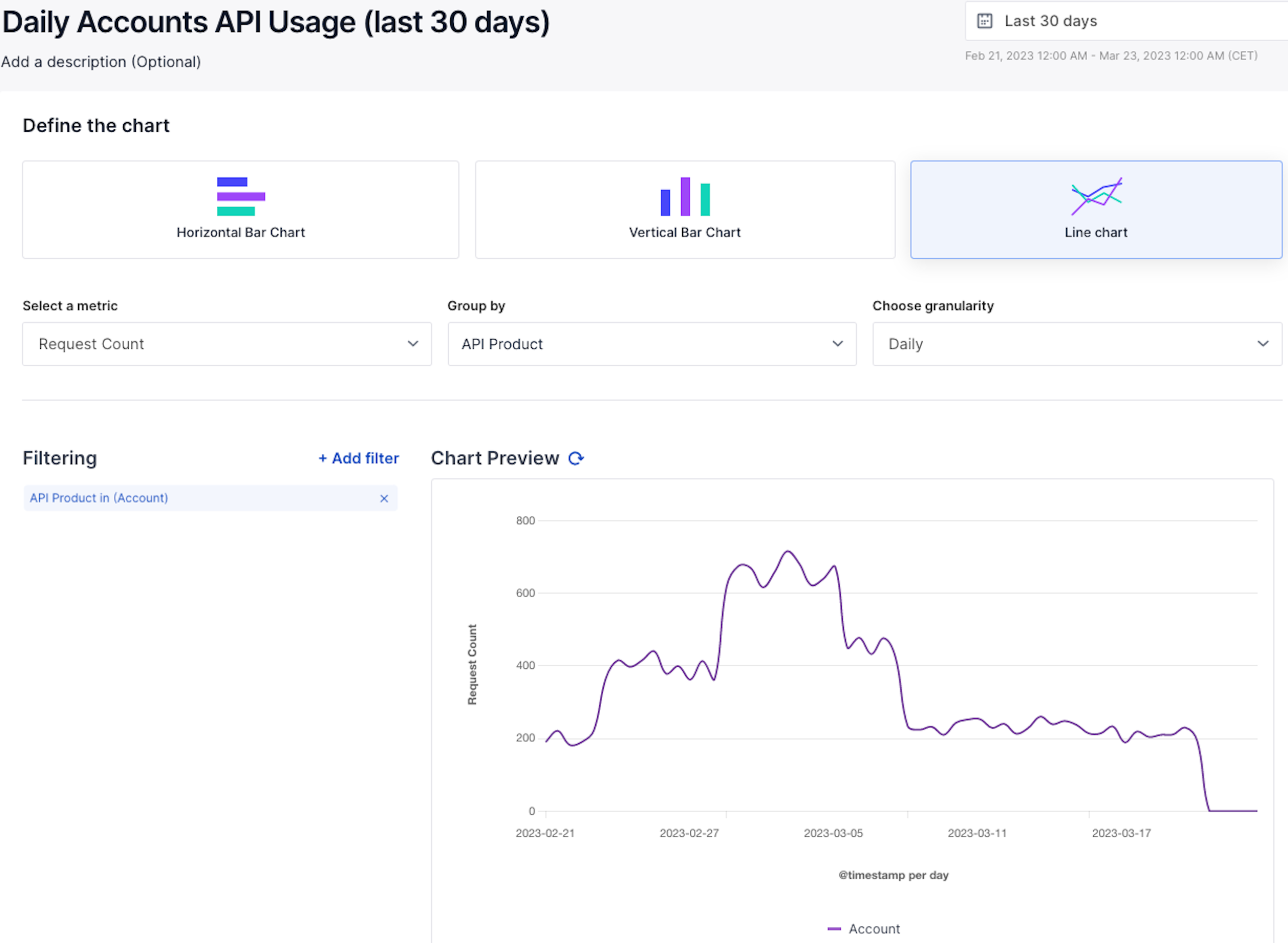

}4. Interact with the page like a user. Here, we configure a graph in our Analytics dashboard builder:
- output: ../../app/_assets/images/docs/konnect/custom-reports/api-usage-by-application.png
url: https://cloud.konghq.com/us/analytics/reports/create
wait: 4000
width: 1920
height: 1080
javascript: |
async () => {
// Configure the report we want to see
const form = document.querySelector(".report-form form");
// Set the report title
form.querySelector("h1").textContent = "API Usage by Application (last 30 days)";
await sleep(500);
// Select "Vertical Bar Chart" and wait for the UI to update
await activateByTestId('chart-type-VerticalBar');
// And the time duration
await activateByTestId('k-datetime-picker-display');
await activateByTestId('select-timeframe-30d');
await activateByTestId('k-datetime-picker-submit');
// Group by Service
form.querySelector(".select-group-by .k-select-input").click();
await sleep(200);
await activateByTestId('k-select-item-Service');
// Then by Application
form.querySelector(".select-then-by .k-select-input").click();
await sleep(200);
await activateByTestId('k-select-item-Application');
// Wait for the chart to render
await sleep(1000);
// The "selector" option didn't work well for some reason. This takes a nice screenshot without sidebar/header
cleanupPage();
}Using shot-scraper, our docs team can write scripts once and have screenshots that are up-to-date, accurate, and reproducible by anyone on the team.
Screenshots in docs, in my experience, struggle with the following things:
So, what's the solution when you want accurate screenshots without spending hours on cropping and resizing? Automation!
This is the only way to ensure that you are insulated from the pace of UI development and design while still being able to provide screenshots in your documentation.
For the Kong Docs team, shot-scraper is an invaluable tool that allows us to provide accurate documentation including screenshots to our readers.
If you're considering making the transition from manual to automated screenshot workflows, here are some practical tips:
To successfully implement shot-scraper, everyone on your team should understand its value. Encourage your team members to embrace automation by showcasing the significant time savings it offers and its contribution to documentation accuracy. This approach can benefit not only the documentation team but also other departments, such as design teams, who can confidently make UI changes without burdening the documentation process.
Shot-scraper as part of your docs arsenal can help bring efficiency, accuracy, and efficacy to your documentation.
